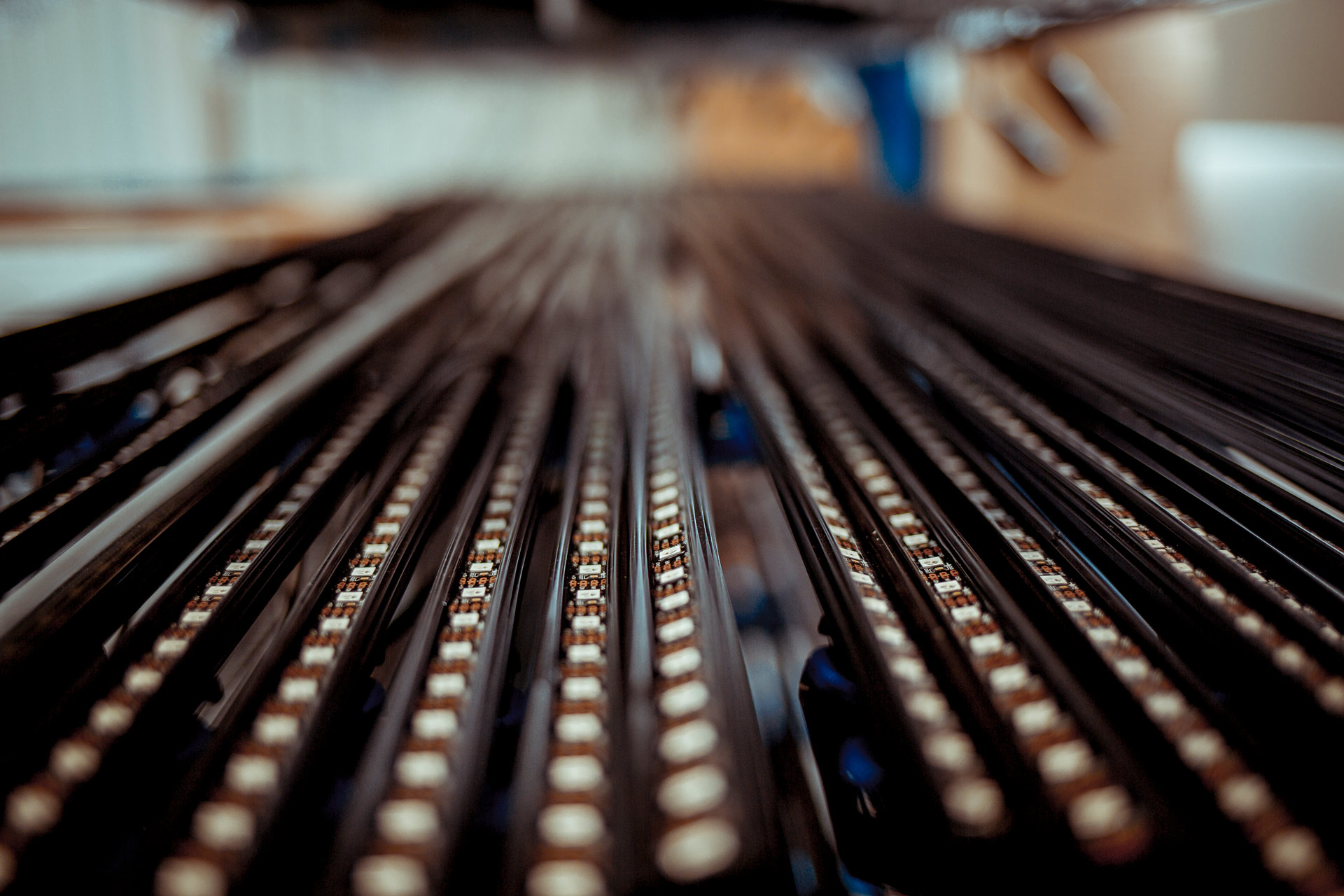

The LEDBLADE led strip system offers seamless control via its new core, the CRE:ON HD unit which is a power supply and a digital led strip controller card in one case serving as a “Hybrid Drive”.

It supports the most common control protocols, such as ArtNet / sACN / Kling-Net standards and has the ability to control 1,000 pixels.

It is 2 meters by default when using a single CRE:ON HD unit on full load with 1,000 pixels.

If you need to have longer cables than 2m between the LEDBLADE ledstripe units, we suggest to use our ‘SIGNAL BOOSTER’ and/or an additional ‘Power Supply Unit’ or ‘CRE:ON HD’ unit set in ‘Bypass’ mode. This would allow that maximum system length can reach up to 100 meters with 1,000 pixels on the output in total.

For further details, please check out our LEDBLADE System Assembly Guide.

Please use cat5e or higher ranked cable for daisy chain CREONs and standard connectors for best result.

On the output and between the LEDBLADE units use at least 3×1,5mm2 cables.

Several CRE:ON HD units can be daisy chained.

We suggest ten (10) CRE:ON HD units to be connected in daisy chain as maximum.

Yes, it is fully flicker free and totally camera friendly.

The system’s frequency matches the multiple of the Camera’s refresh rates.

Absolutely.

Please contact our sales department directly at sales@ledblade.com for more information.
